Edge board protection machine

ZJK-120GHigh speed edge board protecion machine

Product description: High speed edg board protecion machine
INQUIRY

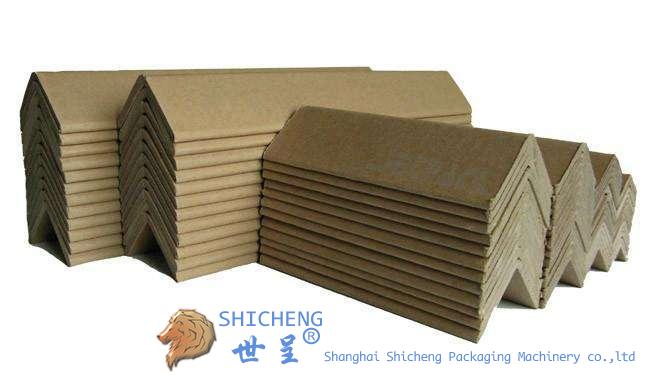

1.It could produce L edge board.
2.If you want to change the produce of different type board, it just need change the forming wheels.
3.It adopts air cylinder to adjust the pressure.
4.It is convenient to control the machine with touch screen and servo system. The cut off precision is 1000±1mm.
5.It is safe to control and maintain the machine with the alarm and the fault display on the touch screen.

6.It could see the output on the touch screen.

Tipo de V corner	25~120mm
Thickness	2.5~10mm
Speed	0~45m/min,
precision cutting	1000±1mm
Max papers	13
paper weight	face paper175~250gsm kraft paer inner paper 420~600gsm tubo paper
Power	9.5KW
Machine Size	25000×1350×1700mm
Weight	4000KG
